New ideas for peak shaving and valley filling hydrogen energy
SEE STATION

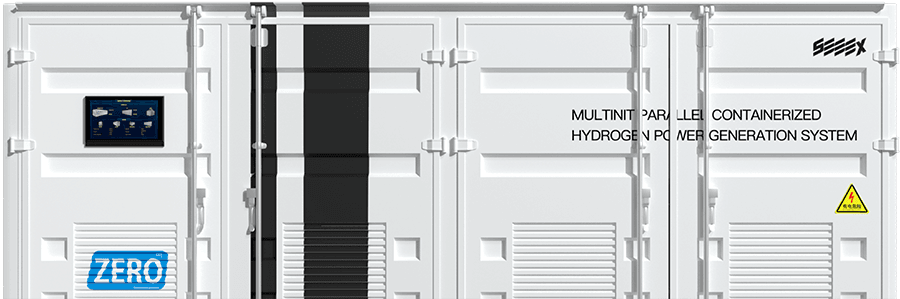

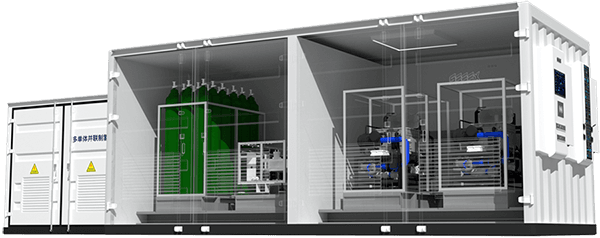

Multi unit parallel container hydrogen power generation system
advantage
Hydrogen power generation provides a new approach for peak shaving and valley filling in the power grid,
Enhance the stability, flexibility, and safety of new energy power grid connection,
Significantly reduce carbon emissions
secure
Multi sensor fusion security strategy, IIC explosion-proof level generator set
Support off grid and grid connected multi-mode operation
Fully self-developed platform based intelligent control strategy with high reliability and robustness
expand

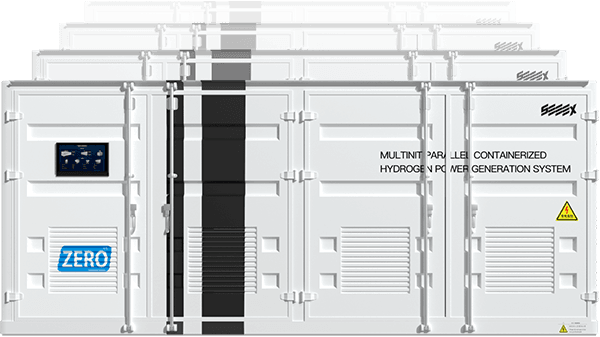

Standard power generation unit, flexible to scale up to megawatt level
Specification parameters
Box size
7000*2400*2850mm
Fuel cell type
PEMFC
cooling type
Forced water cooling
Cold start temperature
-30℃
life
20000h
Rated output power
800 kW
frequency
50 Hz
THD
< 3%
storage temperature
-30 ℃～＋55 ℃
protection grade
IP54
Output voltage
380 V
Power factor
≥ 95%
operation temperature
-30 ℃～＋45 ℃
Power generation efficiency
55 %
